SC100 Hardware Manual
SC100 General Information

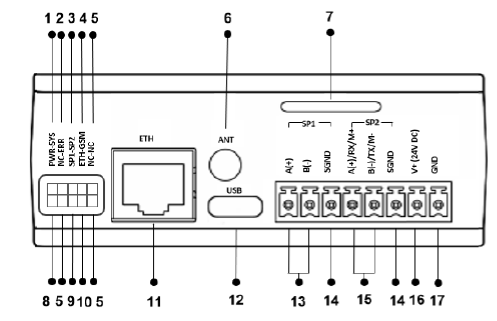

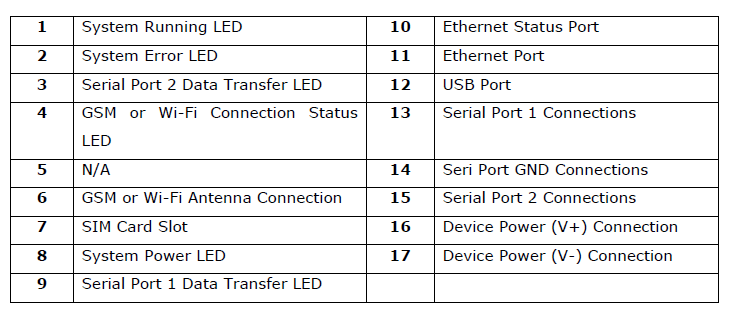

Physical Interfaces

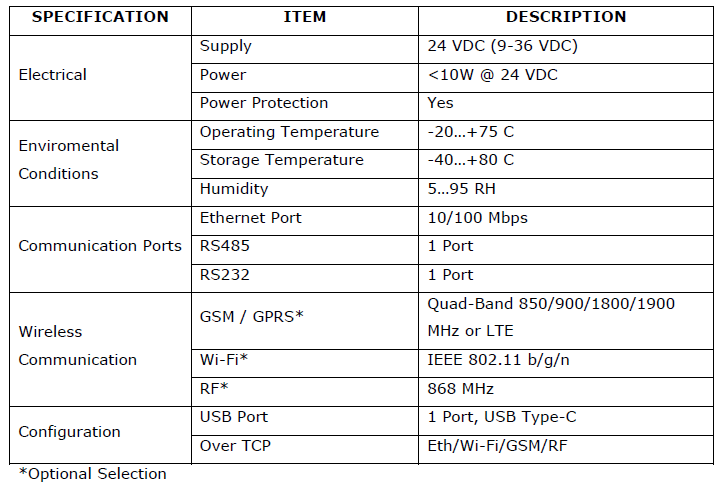

General Device Specifications
Istallation Information
Rail Installation

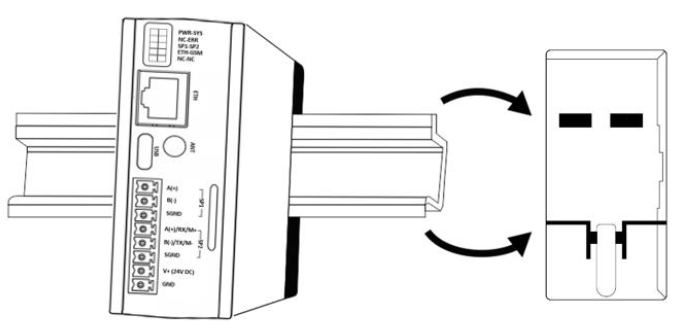

DIN Rail Mountage
First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed.

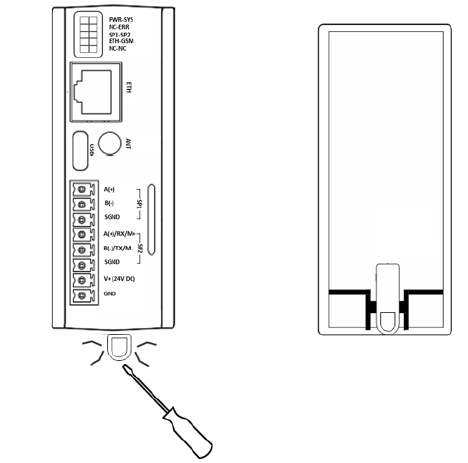

DIN Rail Demountage
To demount the device, firstly it is pulled from the bottom using flexibility of the spring, the device is removed from the DIN Rail and the demounting is completed.
Connection Diagrams

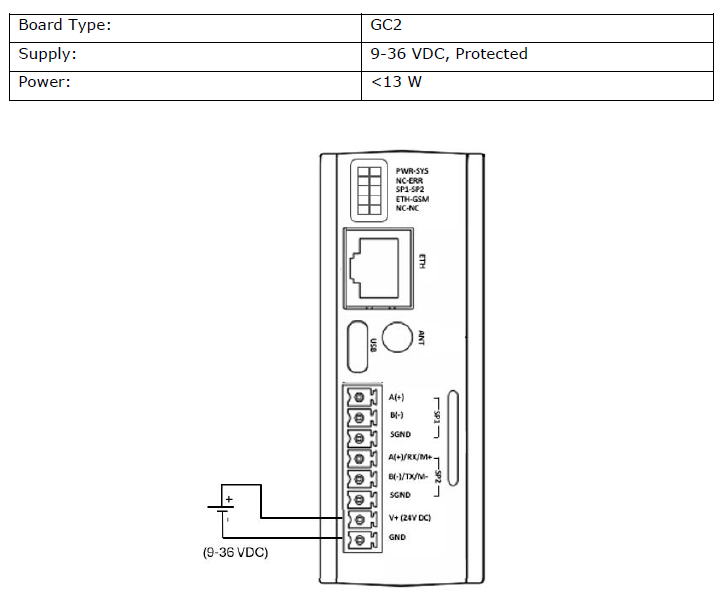

Supply Connection

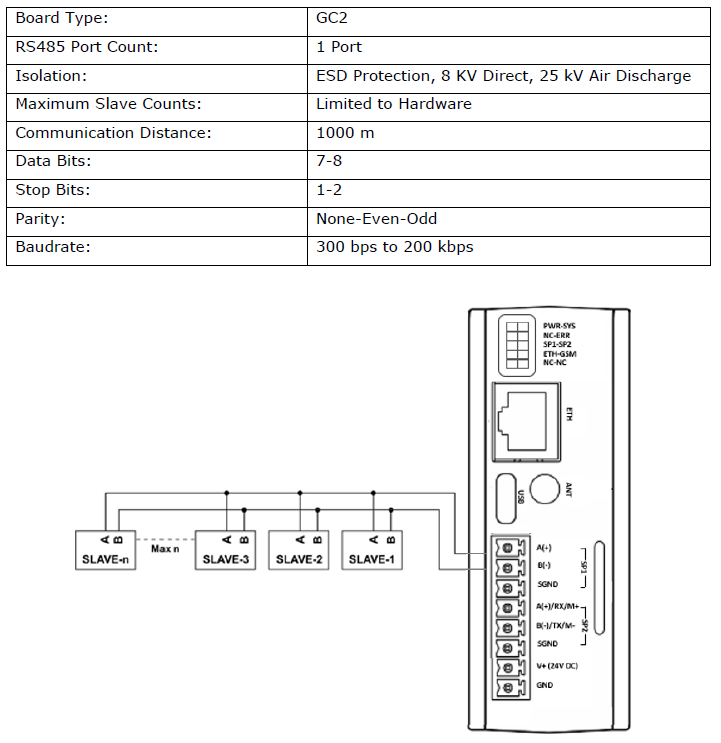

RS485 Serial Port

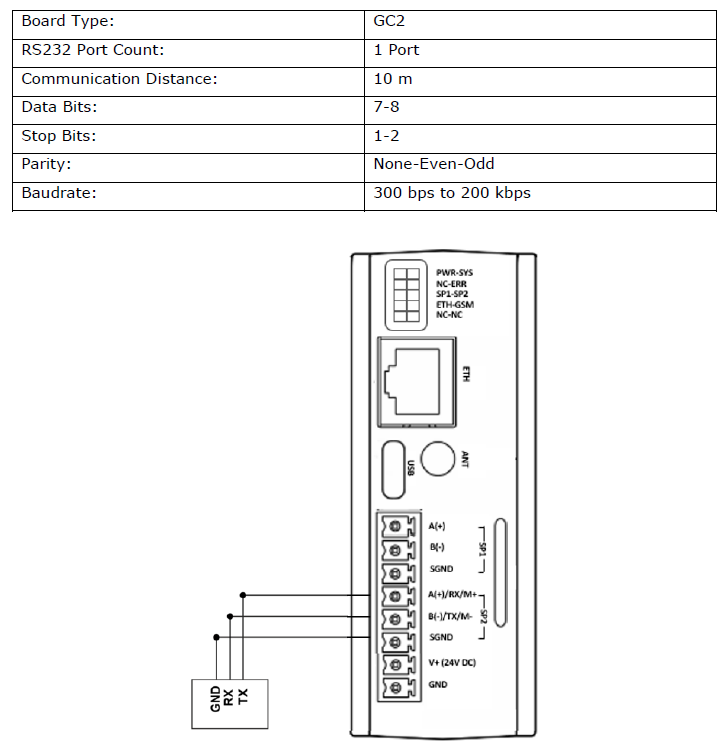

RS232 Serial Port
