MDC100 Hardware Manual

MDC100 General Information​

MDC100 Hardware Manual

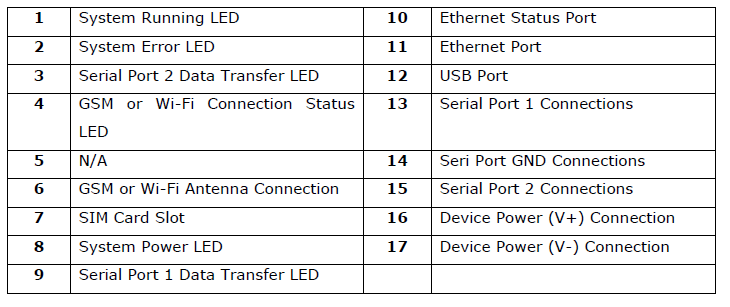

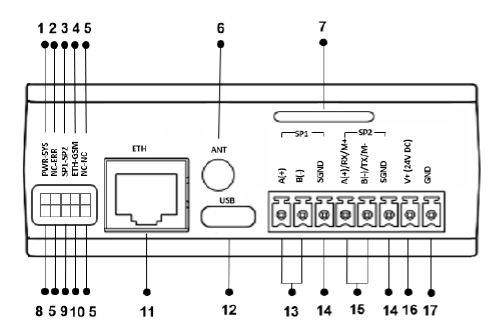

Physical Interfaces​

gateway-MDC100-hardware-088

gateway-MDC100-hardware-099

General Device Specifications​

gateway-MDC100-hardware-033

Note: Models with 2 RS485 ports do not have RS232 ports.

Istallation Information​

Rail Installation​

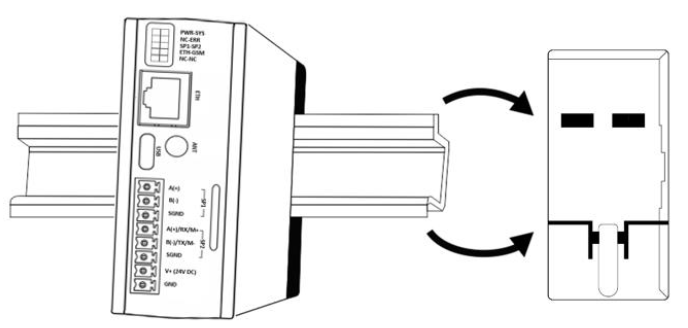

DIN Rail Mountage​

First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed.

gateway-MDC100-hardware-100

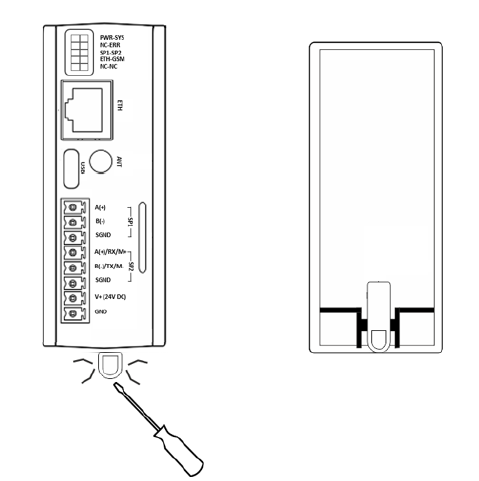

DIN Rail Demountage​

To demount the device, firstly it is pulled from the bottom using flexibility of the spring, the device is removed from the DIN Rail and the demounting is completed.

gateway-MDC100-hardware-101

Connection Diagrams​

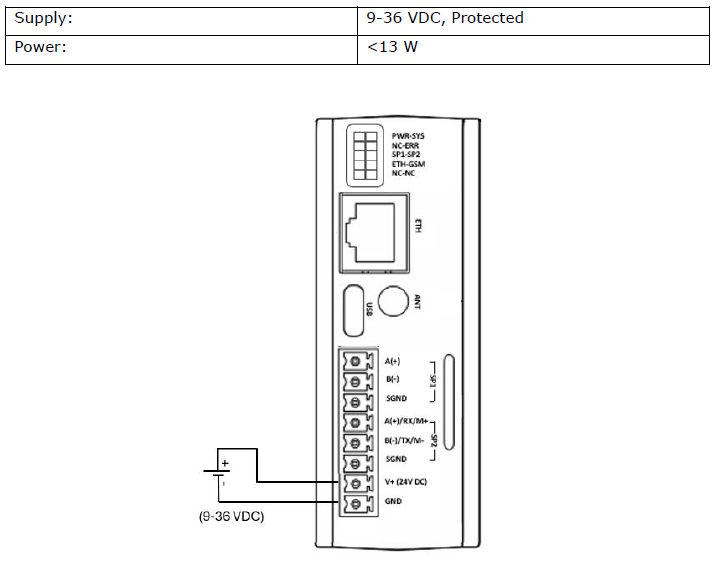

Supply Connection​

gateway-MDC100-hardware-102

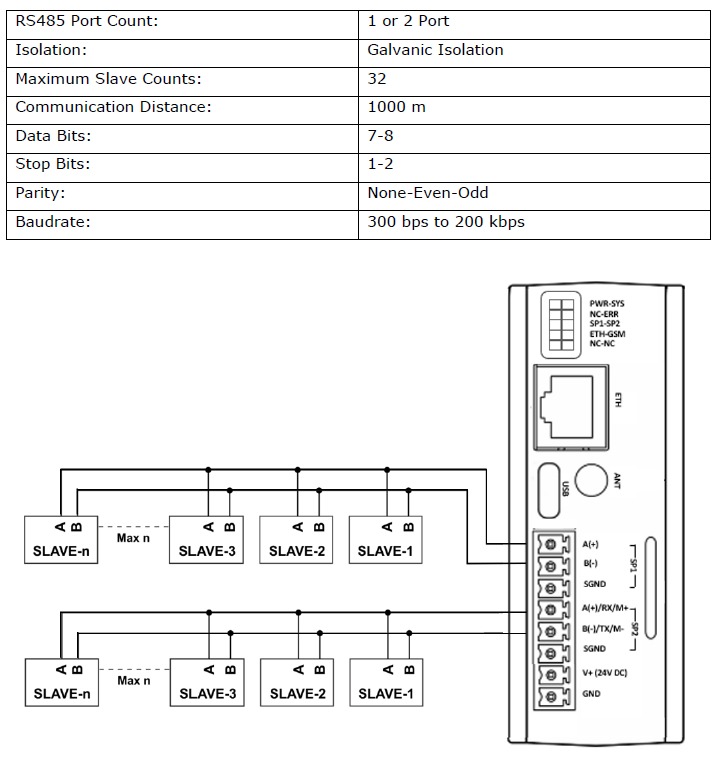

RS485 Serial Port​

gateway-MDC100-hardware-103

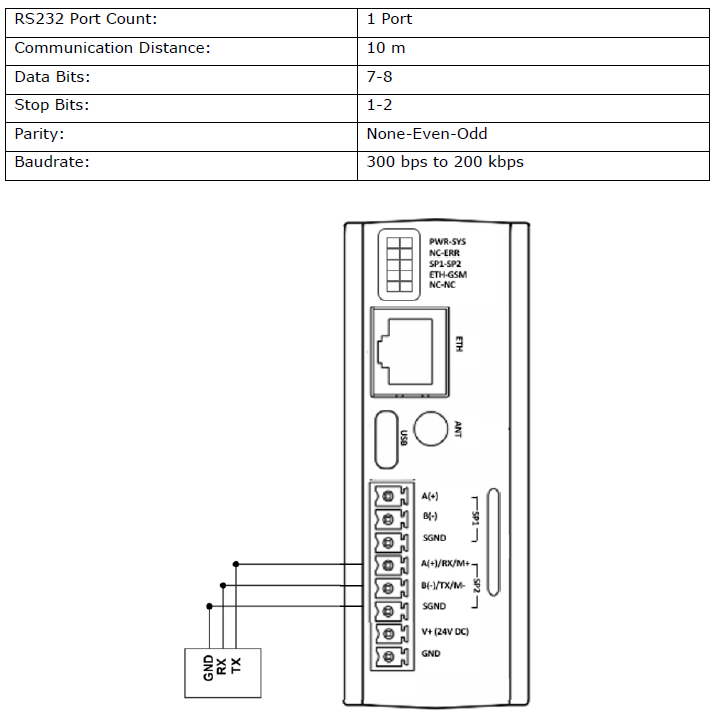

RS232 Serial Port​

gateway-MDC100-hardware-104
