MMS100 Hardware Manual

MMS100 General Information​

MMS100 Hardware Manual

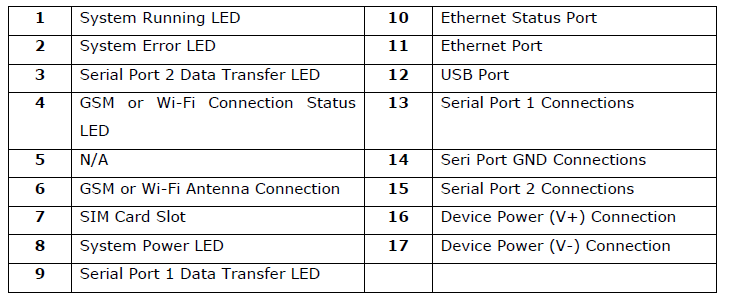

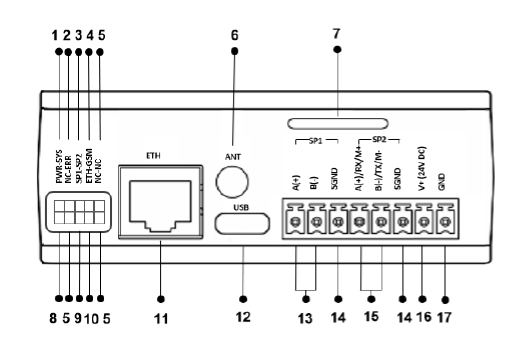

Physical Interfaces​

gateway-MMS100-hardware-08

gateway-MMS100-hardware-09

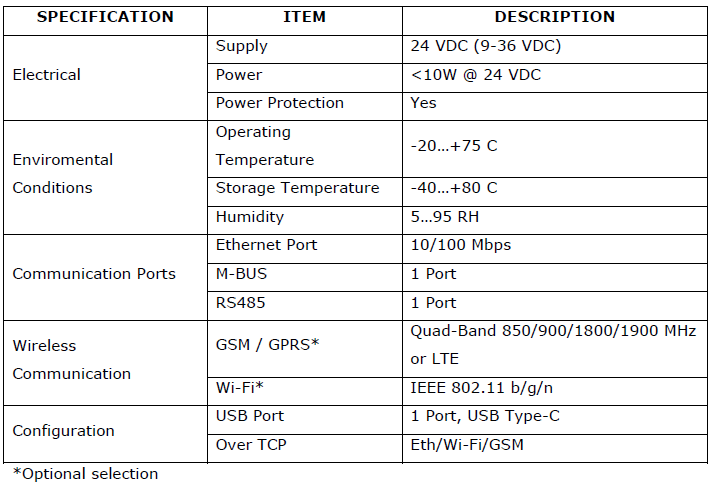

General Device Specifications​

gateway-MMS100-hardware-23

Istallation Information​

Rail Installation​

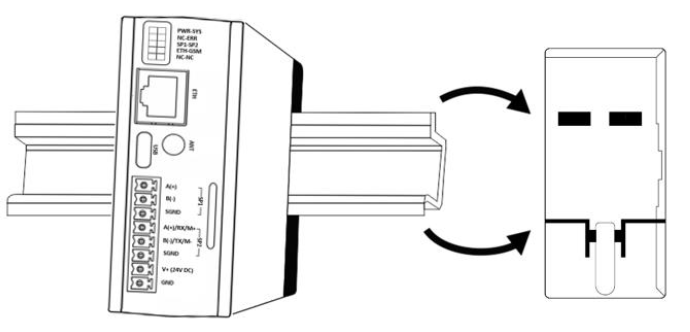

DIN Rail Mountage​

First, the upper part of the device is mounted on the DIN rail. Then, with the help of the springs behind the device, when a lightly force is applied to the lower part, the device locates into the DIN rail easily and the montage is completed.

gateway-MMS100-hardware-10

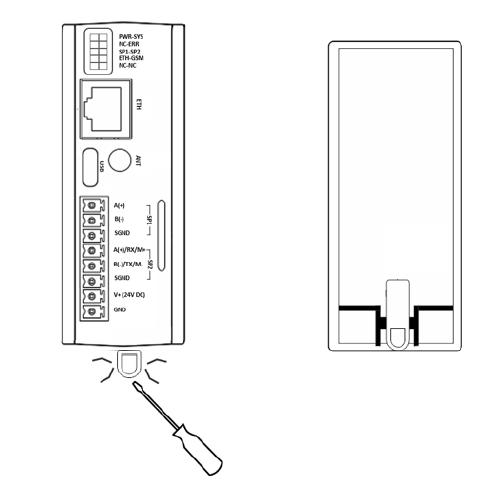

DIN Rail Demountage​

To demount the device, firstly it is pulled from the bottom using flexibility of the spring, the device is removed from the DIN Rail and the demounting is completed.

gateway-MMS100-hardware-11

Connection Diagrams​

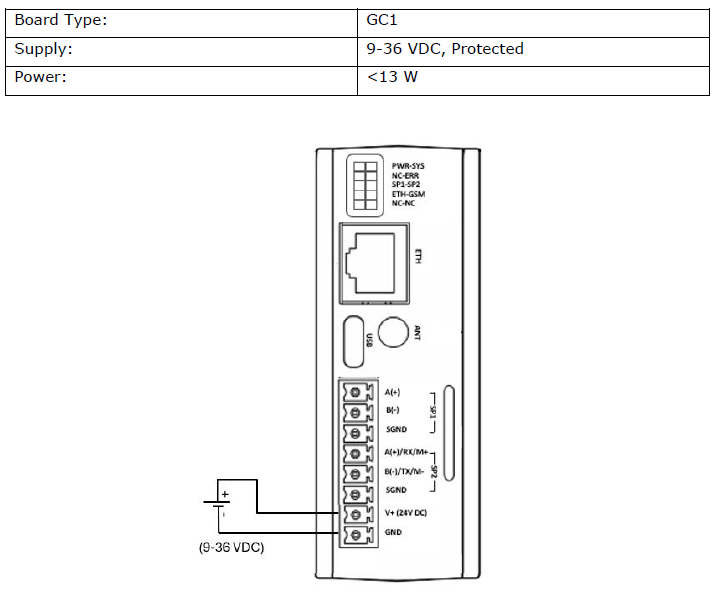

Supply Connection​

gateway-MMS100-hardware-12

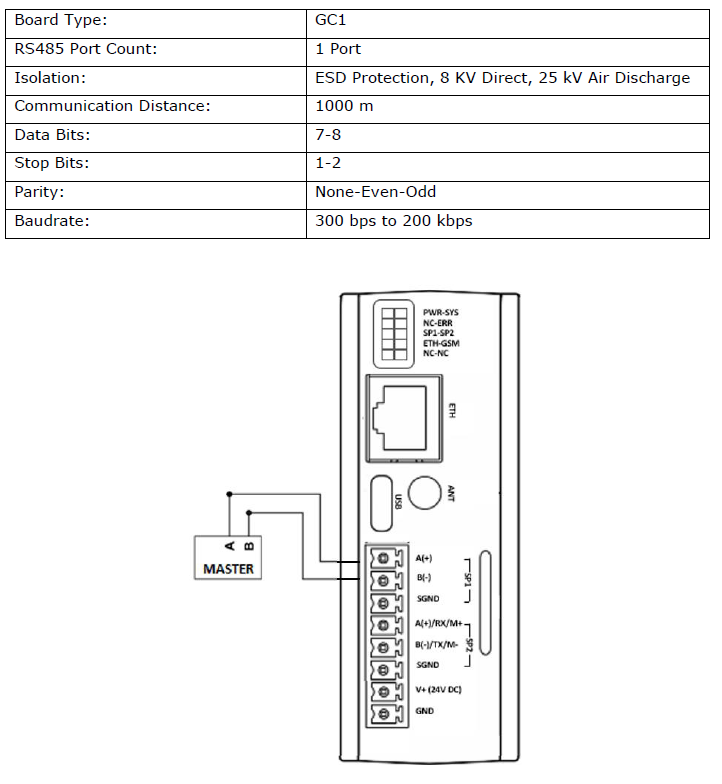

RS485 Serial Port​

gateway-MMS100-hardware-13

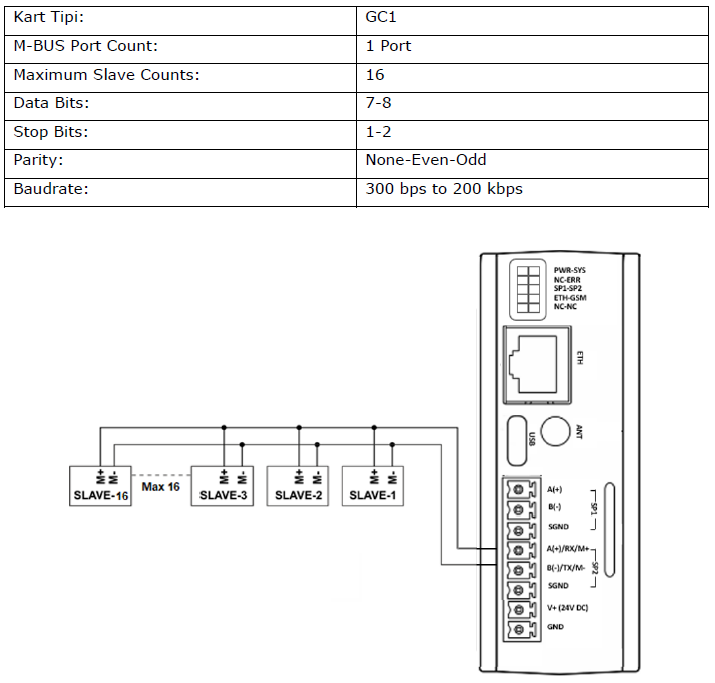

M-Bus Port​

gateway-MMS100-hardware-14
