WEB SERVER LDAP Integration

Note: Starting from Web Server version 1.1.50, user management can be performed via LDAP.
This document is applicable to Web Server version 1.1.50 and later.

Introduction: What is LDAP?

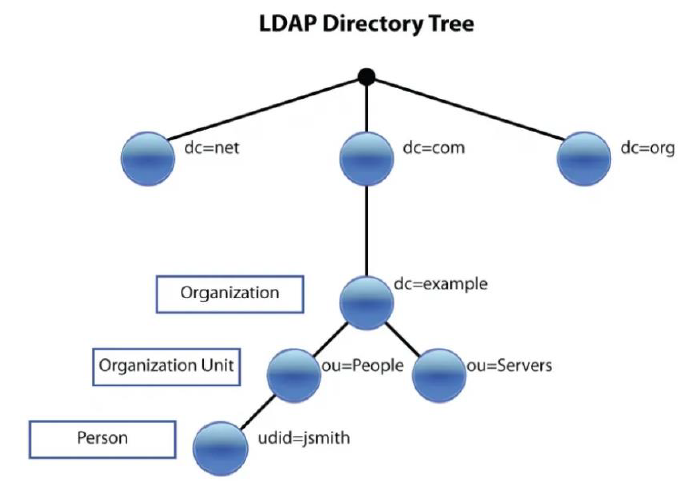

Figure 1: LDAP Directory Tree

LDAP (Lightweight Directory Access Protocol) is a protocol used to store and query objects such as users, groups, and devices in a hierarchical directory.

Typical use cases include:

• Authentication: Verifying a user’s identity.
• Authorization: Determining which resources an authenticated user can access and with what permissions.

Key concepts:

• DN (Distinguished Name)
• OU (Organizational Unit)
• Attribute (e.g., uid, cn)
• Group (posixGroup)

Connection security options:

• LDAPS (636): TLS is established at the start of the connection.
• StartTLS (389): A standard LDAP connection is upgraded to TLS.

The method to be used depends on organizational policies. The device supports both options.

Scope and Supported Directories

This document describes the device’s LDAP client behavior; server setup is shown only briefly in Section 11 for demonstration purposes.

Supported directory schemas:

• OpenLDAP: Group mapping with posixGroup (memberUid) and groupOfNames (member)
• Active Directory: Works with member=<userDN> or uniqueMember=<userDN> membership. (Direct memberOf queries are not used.)

Connection Security Options (TLS/StartTLS)

The device supports the following options for establishing a secure connection to an LDAP server:

• LDAPS (636): TLS is established at the start of the connection.
• StartTLS (389): A standard LDAP connection is upgraded to TLS.

Certificate verification and certificate management are configured according to organizational policies.
If verification fails, client-side errors such as “unknown CA” or “self-signed in chain” may occur.

Device LDAP Client Configuration

Web Server Users Page LDAP Configuration

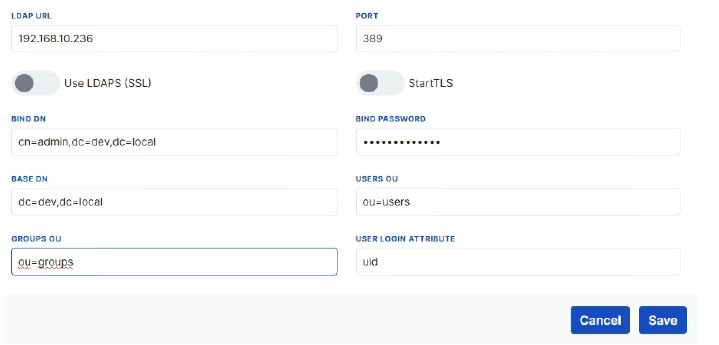

Figure 2: Web Server Users Page LDAP Tab

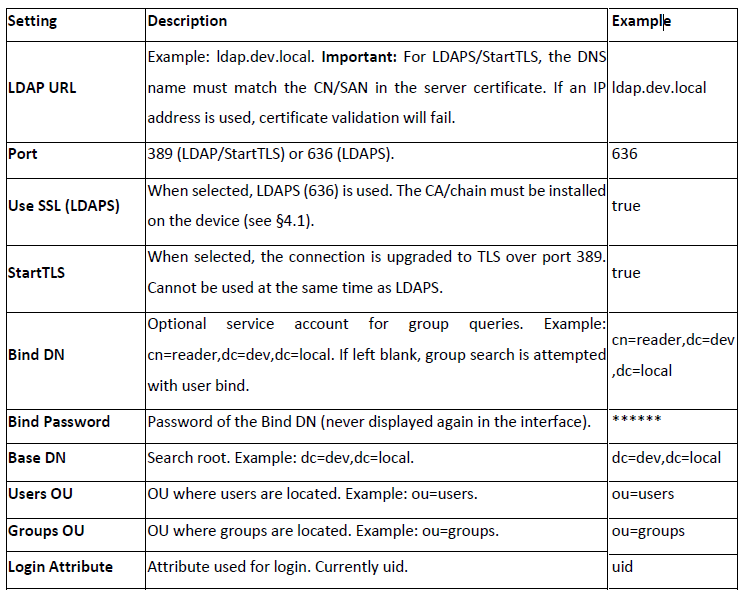

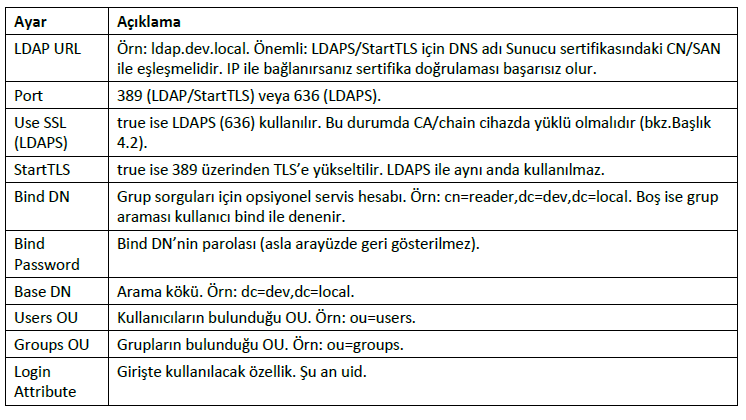

The following fields describe the LDAP client settings in the device’s web interface:

Quick Test: Using the Test Connection button in the interface, a bind and group query can be tested.
The result displays the connection status and the groups found.

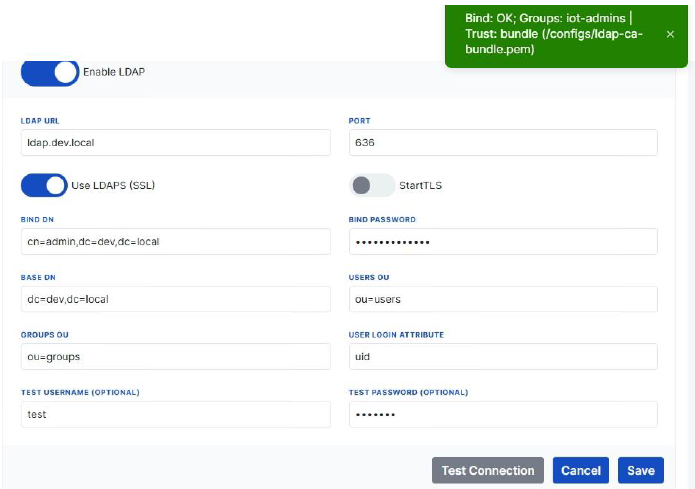

Figure 3: Example Quick Test Output

Web Server Upload Manager Page TLS Certificate Upload and Management

The device stores the LDAP server’s CA certificate under the /configs directory.

1. On the Upload page, use the LDAP Certificate Upload option to upload CA or intermediate CA certificates (.crt or .pem) in PEM format.
2. Uploaded files are saved under /configs/ldaps/.
3. The system merges all PEM blocks into a single bundle file /configs/ldap-ca-bundle.pem.
4. In the application settings, ca_bundle_path is automatically updated to this file.

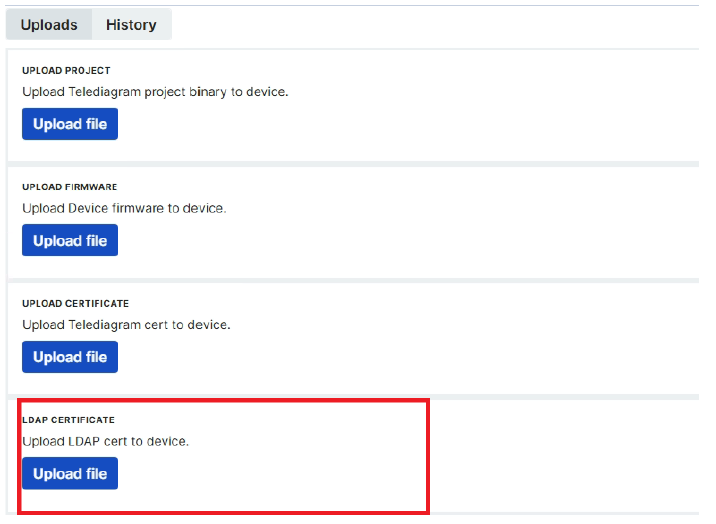

Figure 4: Web Server Upload Manager Screen

Notes:

• The certificate filename is not important; only the content must be in PEM format.
• Multiple CA/intermediate CA certificates can be uploaded; they are merged into one bundle.
• If the organization uses a private CA, its root or chain certificate must be uploaded.
• For LDAPS/StartTLS, the server name (URL) must match the CN/SAN in the certificate (e.g., ldap.dev.local). Do not connect with an IP address.

Authorization Model and Groups

The application assigns roles to users based on their group memberships.

Group	Assigned Role
iot-admins	admin
iot-techs	technician
iot-guests	guest
Others / none	user

Group search filter:

(|(&(objectClass=posixGroup)(memberUid=%s)) (&(objectClass=groupOfNames)(member=%s)) (&(objectClass=group)(member=%s)))

• In OpenLDAP, typically memberUid=<uid> or member=<userDN> is used.
• In Active Directory, member/uniqueMember=<userDN> is common.

Not: Ensure that group names comply with the role mapping defined above.

Authentication Flow and API

Flow Overview

1. The client sends a /login request (username, password).
2. Concurrent session protection: if user_count > 2, HTTP 405 is returned.
3. According to configuration, the login method is selected: LDAP or JSON.
4. In LDAP mode: bind for authentication → group search → role assignment.

Settings APIs (Summary)

GET /api/settings/ldap

Returns the current LDAP settings.

Example response:

{
"use_ldap": true,
"ldap": { ... }
}

POST /api/settings/ldap

Saves LDAP settings (only submitted fields are updated).
The interface may send plain (camelCase) or nested (snake_case) formats.

POST /api/settings/ldap/test

Performs a connection / certificate / group test.
Returns user_bind, service_bind, and groups information.

LDAP-Specific Error Codes and Mapping

The following error codes are produced by the application in the ldap_error field when communicating with LDAP.
The server returns them together with the appropriate HTTP status depending on the context.

Context

• User bind (authenticate): A direct bind attempt on loginDN using the username + password entered by the client.
• Group search (get_groups): After a successful user bind, groups are queried.
  First, a bind is attempted with the service/bind DN (SERVICE).
  If this fails, a group search is attempted using the user bind (USER).

Error Codes Table

Code	HTTP	Source	Description / Typical Causes
INVALID_CREDENTIALS	401	User bind	Wrong password; incorrect loginDN (OU/attribute mismatch) or empty password
LDAP_BIND_ERROR	503	User bind	General bind errors unrelated to credentials (account locked, policy violation, etc.)
LDAP_UNREACHABLE	503	User bind	Server unreachable (IP/port, firewall, DNS)
LDAP_ERROR	503	User bind	General/unexpected LDAP error (timeout, protocol failure, etc.)
SERVICE_BIND_INVALID_CREDENTIALS	503	Group (SERVICE)	Invalid bind_dn/bind_password; groups could not be retrieved
SERVICE_BIND_ERROR	503	Group (SERVICE)	General service bind error (ACL/permissions, etc.)
SERVICE_ERROR	503	Group (SERVICE)	Unexpected error during service bind (network, timeout)
USER_BIND_INVALID_CREDENTIALS	401 / Warning	Group (USER)	Group search with user bind failed (password/ACL issue)
USER_BIND_ERROR	401 / Warning	Group (USER)	General error during group search with user bind
USER_ERROR	Warning	Group (USER)	Unexpected error during group search with user bind

Notes on Application Behavior

• In LDAP mode, passwords are not stored on the device; only the user identity (and role) is kept.
• The JSON backend (for development) uses MD5 in password hashing.
• If the username/password admin/admin is used, local (JSON) authentication is applied instead of LDAP.
• The JWT validity period is 30 minutes.
• In the interface, LDAPS and StartTLS are mutually exclusive; when one is enabled, the other is automatically disabled (the port field is updated accordingly).

Quick Verification Steps

1. (TLS) First, upload your CA certificate as described in §4.1 (Upload → LDAP Certificate Upload).
2. Enter the LDAP client settings (§4) and verify them with Test Connection.
3. In LDAP, add a test user to an appropriate group (iot-*).
4. Log in with the test user in the application and verify that the permissions are applied as expected.

Troubleshooting

Common Cases

• Cannot connect: Check IP/port, DNS, and service status. For LDAPS, port 636 must be accessible; for StartTLS, port 389 must be accessible.
• Hostname mismatch: The name in the URL must match the CN/SAN in the server certificate (e.g., ldap.dev.local).
• CA errors (unknown CA / self-signed in chain): An incorrect CA may have been uploaded. Check whether /configs/ldap-ca-bundle.pem is up to date.
• Bind error / invalidCredentials: Verify that the loginDN is correctly formed with login_attr=uid (uid=<user>,<UsersOU>,<BaseDN>).
• Role not assigned: Ensure the group includes memberUid=<uid> or member/uniqueMember=<userDN>. Group names must match the iot-* pattern.

Advanced Commands (optional)

Certificate session (LDAPS 636):

openssl s_client -connect ldap.dev.local:636 -servername ldap.dev.local \ -CAfile /configs/ldap-ca-bundle.pem -brief </dev/null

LDAP search (with bind):

ldapsearch -H ldaps://ldap.dev.local:636 -b "dc=dev,dc=local" \
-D "cn=ldap-reader,dc=dev,dc=local" -W \
"(|(objectClass=posixGroup)(objectClass=groupOfNames))" cn member memberUid

Example LDAP Server Configuration (for Developers)

This example shows the configuration used during development.
(Setup details may vary depending on the customer’s environment.)

docker-compose.yml (summary)

version: "3.8"
services:
ldap:
image: osixia/openldap:1.5.0
container_name: dev-ldap
environment:
LDAP_ORGANISATION: "Dev Org"
LDAP_DOMAIN: "dev.local"
LDAP_ADMIN_PASSWORD: "XXXX"
LDAP_REMOVE_CONFIG_AFTER_SETUP: "false"
ports:

  - "389:389"
  - "636:636"
volumes:
  - ./ldifs:/container/service/slapd/assets/config/bootstrap/ldif/custom

phpldapadmin:
image: osixia/phpldapadmin:0.9.0
container_name: dev-ldapui
environment:
PHPLDAPADMIN_LDAP_HOSTS: ldap
ports:

  - "6443:443"
depends_on:
  - ldap

docker-compose.yml (SSL)

services:
ldap:
image: osixia/openldap:1.5.0
container_name: dev-ldap
hostname: ldap.dev.local
command: ["--copy-service","--loglevel","debug"]
environment:
LDAP_ORGANISATION: Dev Org
LDAP_DOMAIN: dev.local
LDAP_ADMIN_PASSWORD: XXX
LDAP_CONFIG_PASSWORD: XXX
LDAP_TLS: "true"
LDAP_TLS_CRT_FILENAME: ldap.dev.local.crt
LDAP_TLS_KEY_FILENAME: ldap.dev.local.key
LDAP_TLS_CA_CRT_FILENAME: dev-local-ca.crt
LDAP_TLS_ENFORCE: "false"
LDAP_TLS_VERIFY_CLIENT: "never"
LDAP_REMOVE_CONFIG_AFTER_SETUP: "false"
ports:

  - "389:389"
  - "636:636"
volumes:
  - type: bind
    source: C:\Users\user\Desktop\<XXX>\ldap ssl\certs
    target: /container/service/slapd/assets/certs
  - type: bind
    source: C:\Users\user\Desktop\<XXX>\ldap ssl\ldifs
    target: /container/service/slapd/assets/config/bootstrap/ldif/custom
    read_only: true
restart: unless-stopped

phpldapadmin:
image: osixia/phpldapadmin:0.9.0
container_name: dev-ldapui
environment:
PHPLDAPADMIN_LDAP_HOSTS: "ldaps://dev-ldap"
PHPLDAPADMIN_LDAP_CLIENT_TLS_REQCERT: "never"
ports:

  - "6443:443"
depends_on:
  - ldap
restart: unless-stopped

LDIF OUs and Groups (example)

OUs

dn: ou=users,dc=dev,dc=local
objectClass: organizationalUnit
ou: users

dn: ou=groups,dc=dev,dc=local
objectClass: organizationalUnit
ou: groups

Groups

dn: cn=iot-admins,ou=groups,dc=dev,dc=local
objectClass: posixGroup
cn: iot-admins
gidNumber: 5000
memberUid: test

dn: cn=iot-techs,ou=groups,dc=dev,dc=local
objectClass: posixGroup
cn: iot-techs
gidNumber: 5001

dn: cn=iot-guests,ou=groups,dc=dev,dc=local
objectClass: posixGroup
cn: iot-guests
gidNumber: 5002

Example Operations in PhpLDAPAdmin

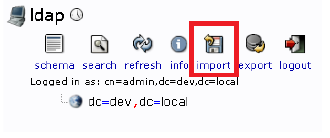

Figure 5: LDIF Import Menu (example)

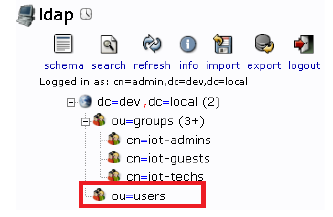

Figure 6: Access to ou=users node

Figure 7: Before renaming: cn=…

Figure 8: After renaming: uid=…

Figure 9: Adding a user to iot-admins group (memberUid)
